How-To: Create an Input Config

Goal: author a UCrimsonInputConfig that maps your UInputAction assets to gameplay tags, so all binding and lookups happen by tag.

Prerequisites
You have your UInputAction assets (Quick Start step 2) and an InputTag gameplay-tag hierarchy (or you will add one in step 3).

1. Create the asset and fill the lists

UCrimsonInputConfig is a Const data asset with three arrays of FCrimsonInputAction (an InputAction + InputTag pair). Put each action in the list that matches how it is consumed.

ListBound howExamples
NativeInputActionsBindNativeAction -> a C++ callback (or a Blueprint Enhanced Input event)Move, Look, Jump, Crouch
AbilityInputActionsBindAbilityActions / BindAbilityActionsWithAction -> GAS by input tagAbility.1 - Ability.6, Confirm, Cancel
UIInputActionsFBindUIActionArgs(UInputAction*, ...) in a CommonUI widgetUI.Escape, UI.Confirm, UI.Back, UI.Tab
Verify

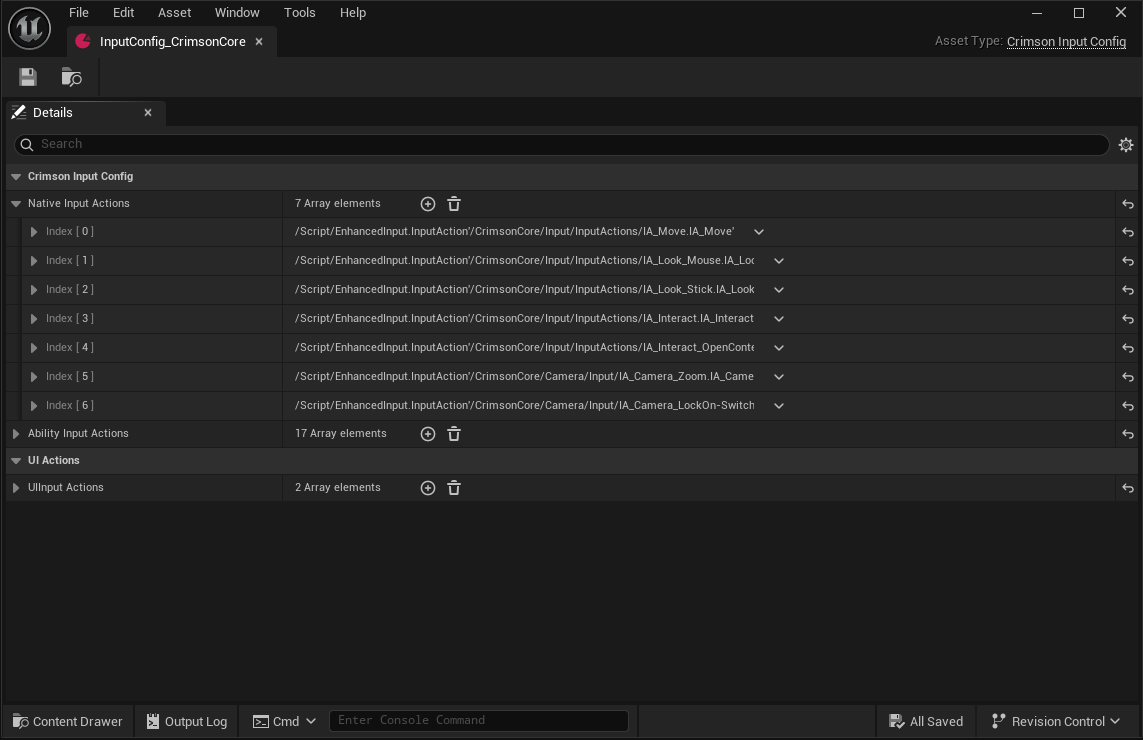

The asset shows all three arrays and each row's InputTag picker is scoped to your InputTag parent tag.

2. Look actions up by tag

The three Find...InputActionForTag functions are the read side of the config - they are BlueprintCallable, so both C++ and Blueprint resolve an action from a tag. Pass bLogNotFound = false for optional lookups. You call them on a config reference - see How-To: Get the Building Blocks step 2.

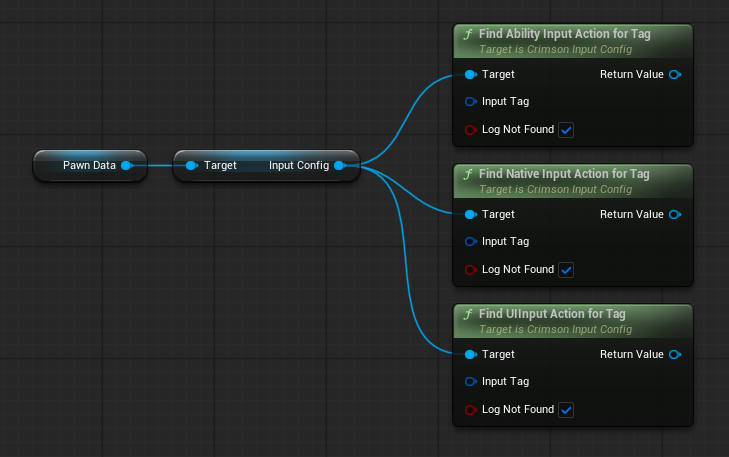

Drag your config variable into the graph (see How-To: Get the Building Blocks step 2) and pull off it: Your Input Config -> Find Ability Input Action For Tag (Input Tag = InputTag.Ability.1, b Log Not Found = unticked). The Return Value is the UInputAction - feed it into whatever needs the asset, such as a key-glyph node. The native and UI lists have their own nodes, Find Native Input Action For Tag and Find UI Input Action For Tag, with identical pins.

Verify
A valid tag returns its UInputAction; an unmapped tag returns null (and logs only when bLogNotFound is true).

3. Name your input tags

Keep input tags under a dedicated InputTag parent so the pickers stay scoped. Declare them in DefaultGameplayTags.ini (or as native tags):

ini
; DefaultGameplayTags.ini
+GameplayTagList=(Tag="InputTag.Move")
+GameplayTagList=(Tag="InputTag.Look.Mouse")
+GameplayTagList=(Tag="InputTag.Jump")
+GameplayTagList=(Tag="InputTag.Ability.1")
+GameplayTagList=(Tag="InputTag.Ability.Confirm")
+GameplayTagList=(Tag="InputTag.UI.Escape")
+GameplayTagList=(Tag="InputTag.UI.Back")

See also

  • How-To: Get the Building Blocks - how to reference this config from Blueprint or C++.
  • How-To: Bind Ability Input - forward AbilityInputActions to your ability system.
  • How-To: Bind Native Input - wire NativeInputActions to C++ callbacks.
  • Concept: Tag-Driven Input - why the config is the indirection layer.
