How-To: Find and Fix Input Clashes

Goal: find every Input Action that a higher-priority Input Mapping Context silently hides, every key two contexts fight over, and every chord that can never fire - and repair them from one Review page - without pressing Play once. This page walks the whole tool, button by button. It is longer than most How-To pages on purpose: the analyzer models something the editor never shows you, so the first run is confusing without a guide.

What the tool is checking, in one paragraph

When a player's control mappings are rebuilt, Enhanced Input sorts every applied context by priority (highest first) and walks their mappings. A mapping whose action has Consume Lower Priority Enhanced Input Mappings ticked claims its key: every mapping on that key in a lower-priority context is dropped, before the game runs a single frame. Two contexts at the same priority are ordered by whichever was added first, which no asset records. Chorded mappings are exempt from claiming, but only the engine's own Chorded Action trigger gets that exemption. The analyzer replays exactly that rebuild over a scenario - the contexts you say are applied together, at what priority, in which input mode - and reports every place the outcome is not what a designer would expect.

1. Open the analyzer

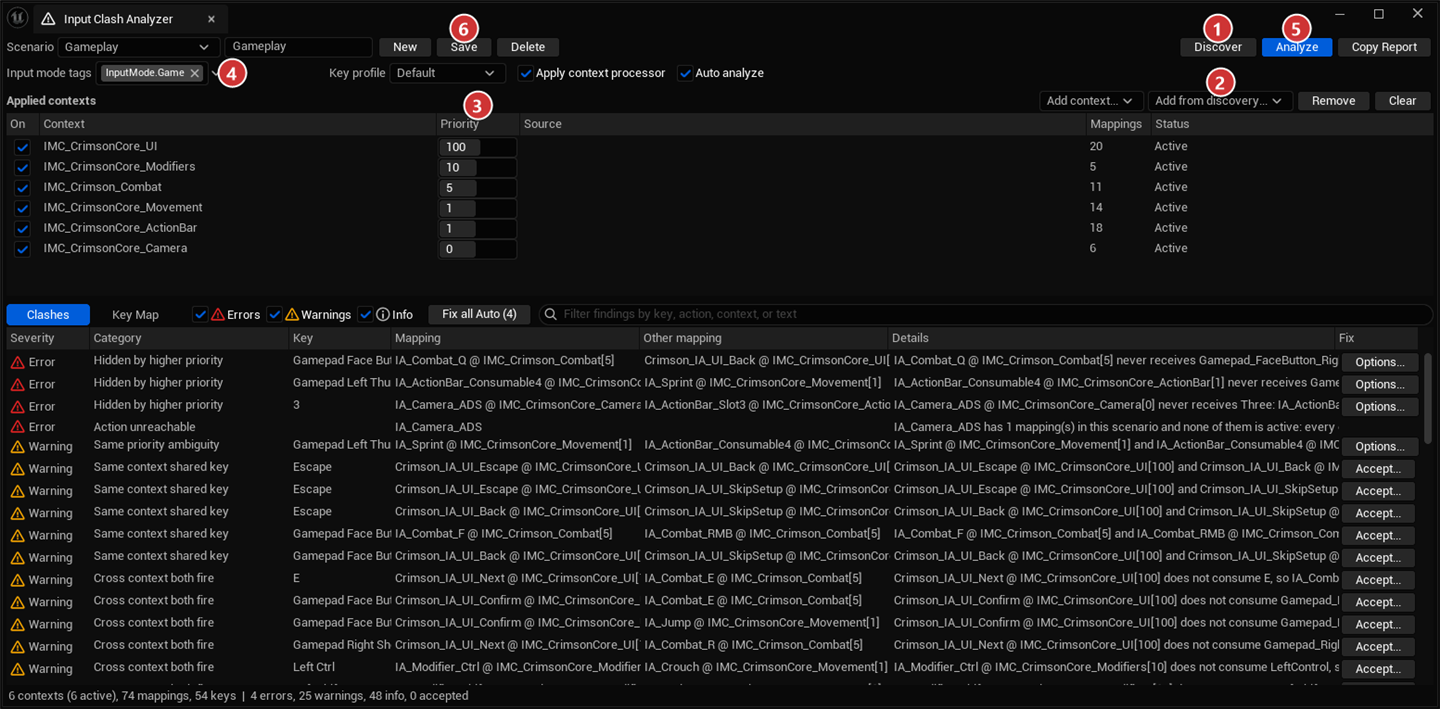

Tools -> Crimson Input -> Input Clash Analyzer (1), or the Input Clashes button in the Level Editor play toolbar (2). The tab is a normal dockable tab; it opens floating the first time and remembers where you dock it. The console command Crimson.InputClash.Open opens it too, and Crimson.InputClash.Open <ScenarioName> opens it with a saved scenario already analyzed.

2. Discover what the project applies

Press Discover (1). The scan takes a few seconds on a large project and shows a progress bar. It finds every UInputMappingContext and UInputAction asset, plus every place a context is applied with a priority that can be read from assets: the engine's Default Mapping Contexts project setting, AddMappingContext nodes in Blueprint graphs (literal pins only), and any asset, class default, or component template that stores a context next to an integer property whose name contains Priority. Lyra-style InputMapping + Priority structs on a game feature action, a hero component's default mappings, CommonUI's InputMapping + InputMappingPriority on a screen widget, a data asset with its own MappingContextPriority - all of these count.

3. Build a scenario

A scenario is the list in the Applied contexts panel. Fill it three ways, and mix them freely:

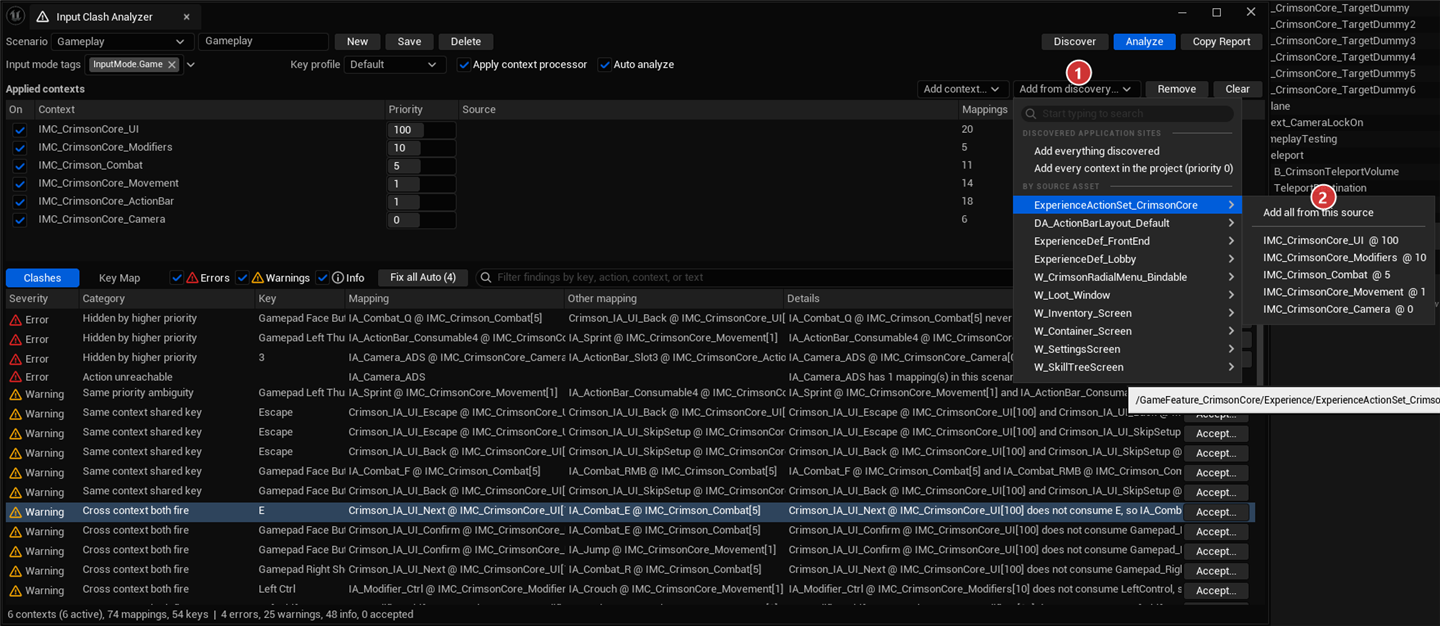

• Add from discovery... (1) lists every asset that applies a context, as a submenu. Open the asset you care about and pick Add all from this source (2) to add its contexts with the priorities it uses, or pick contexts one at a time. Add everything discovered adds every application site at once; Add every context in the project adds every context asset at priority 0 whether or not anything applies it.

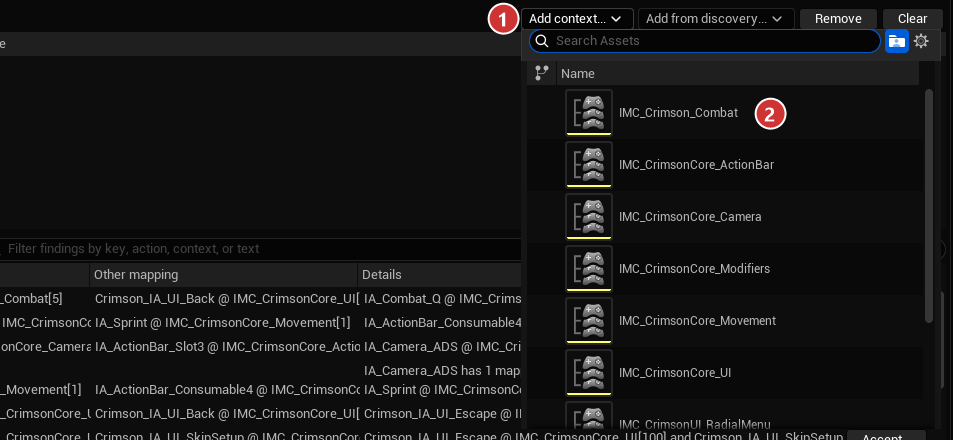

• Add context... opens an asset picker filtered to Input Mapping Contexts. Use it for contexts your C++ applies. They arrive at priority 0; set the real value in the Priority column.
• Remove drops the selected rows; Clear empties the list; the On checkbox keeps a context in the scenario without analyzing it, handy for comparing with and without a screen open.

Then set each Priority (3) to what the game passes to AddMappingContext. Discovery fills this in; hand-added contexts start at 0. Double-click a row to open the context asset.

4. Tell it which input mode the player is in

The Input mode tags field (4) holds the gameplay tags the player is assumed to be in - typically InputMode.Game during play and InputMode.Menu (or both) while a screen is open. Enhanced Input only consults these when Enable Input Mode Filtering is on in Project Settings -> Engine -> Enhanced Input -> Input Modes; then every context whose Input Mode Query does not match is dropped from the rebuild, exactly as at runtime, and the analyzer shows it as Filtered by input mode in the Status column. With filtering off in the project, the field does nothing and you can leave it empty.

Two more knobs on the same row: Key profile analyzes a mappable key profile's override mappings instead of the defaults (the list is built from the profiles the selected contexts define). Apply context processor runs each context through FCrimsonInputContextProcessor (Input/CrimsonInputContextProcessor.h) first. When a plugin has registered a processor - typically one that injects chord triggers so rebindable chords are enforced - that duplicate is what the runtime actually applies, so leave it on. With no processor registered it is a no-op.

5. Analyze and read the Clashes view

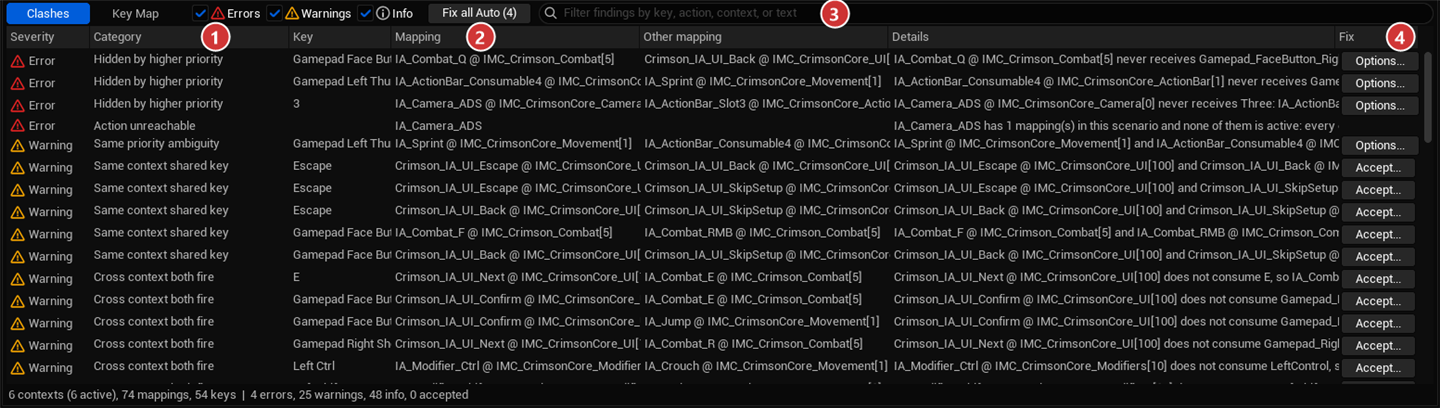

Press Analyze (5). With Auto analyze ticked the report also refreshes every time you change a priority, a checkbox, or a tag. The Clashes view lists one row per finding, most severe first. Filter with the three severity toggles (1), review the certain fixes with Fix all Auto (2), or type in the filter box (3) to match a key, an action, a context, or any word of the explanation. The Fix column (4) is step 7. Double-click a row to open the context it names; right-click for the action, the other context, or to copy the row as text. Copy Report puts the whole report on the clipboard.

6. Read the Key Map view

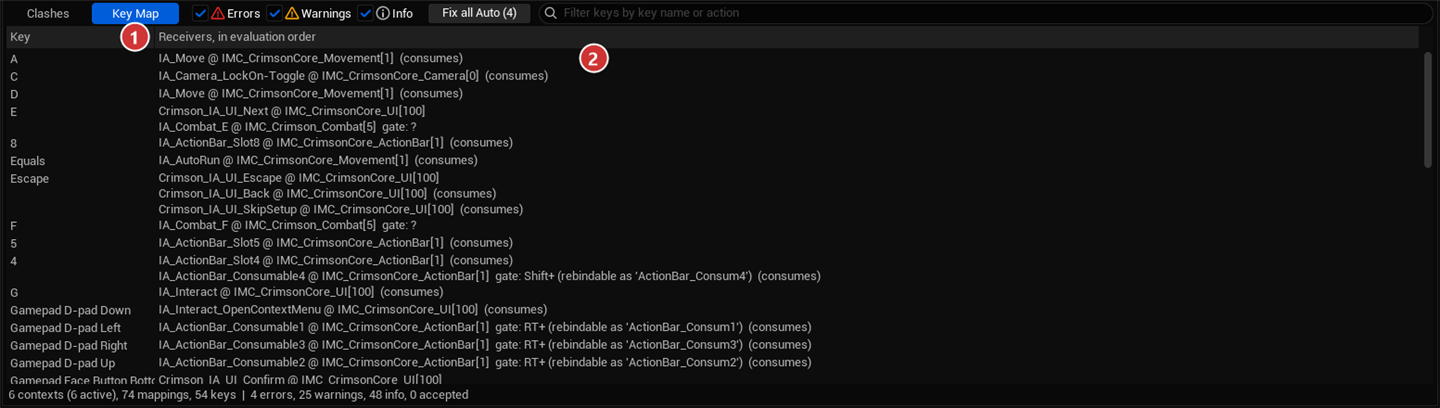

Switch to Key Map (1) to see the same analysis from the key's point of view: one row per key, its receivers listed in the engine's evaluation order (2). An active receiver is white; a hidden one is dimmed with [HIDDEN by ...] after it; (consumes) marks the mapping that claims the key; gate: Shift+ shows a chord condition; gate: ? marks a custom trigger the analyzer could not evaluate (step 9). This is the view to use when someone reports key X does nothing - find the key and read down.

7. Fix what it found

Every finding the tool can repair shows a button in the Fix column. There are four kinds:

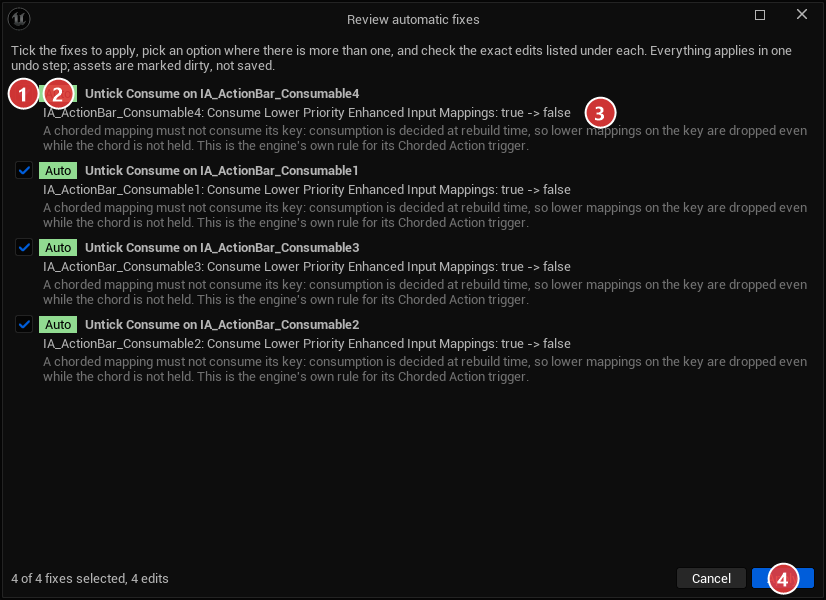

Every button opens the same Review window. Tick the fixes to apply (1), read the tier (2) and the exact edits listed under each fix - asset, property, old value, new value (3) - then press Apply (4). Everything applies in one Undo step; packages are marked dirty, not saved, so you can still look at the assets before committing. The scenario updates when a context priority changed, and the analysis re-runs so the fixed rows disappear.

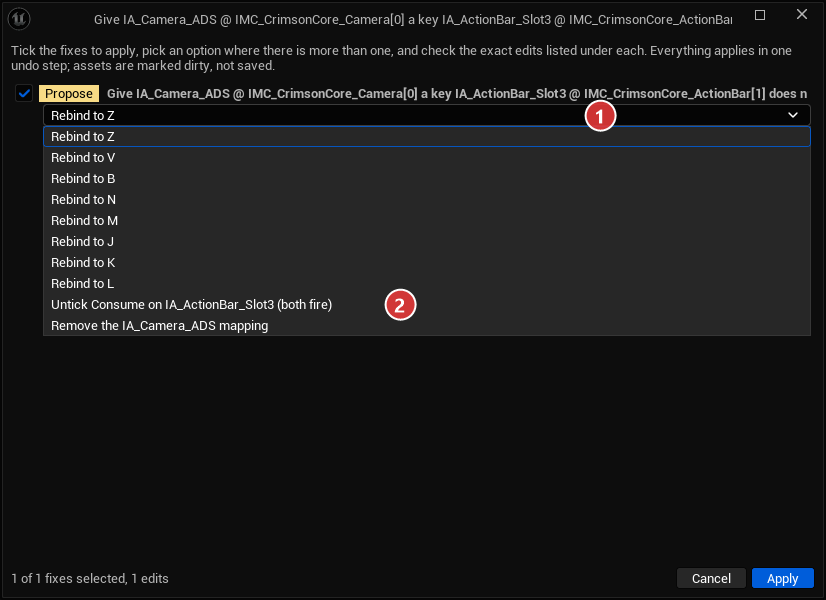

A Propose fix shows a dropdown (1) with every option the tool could find; the first is its best guess. For a hidden mapping the list is Rebind to <free key> entries, then Untick Consume on <the hider> (2), then Remove the mapping, and finally Remove the higher mapping instead for the case where the higher one is the duplicate (a screen that rebinds a global navigation action on the same key), and Accept when the hiding is the design: a screen owns the key while it is open and the gameplay action underneath is meant to wait. Accepting records the pair on the scenario like any other accept and also retires the Action unreachable row it caused. When the hidden mapping is itself a chord, the untick option comes first: moving a chorded mapping defeats the chord.

8. Save the scenario

Type a name in the box next to the scenario dropdown and press Save (6). The scenario - contexts, priorities, input mode tags, key profile, processor toggle, and the accepted pairs - is written to Config/DefaultEditor.ini under UCrimsonInputClashSettings::InputClashScenarios, so it travels with the project and the team shares it. New starts an empty one; Delete removes the saved one. A * after the name in the dropdown means unsaved changes.

9. Teach it your custom chord trigger (optional)

The analyzer understands the engine's Chorded Action trigger by itself. Any other Implicit or Blocker trigger is opaque: its mapping shows gate: ? in the Key Map and an Unevaluated gate info row, and the analyzer treats it as unconditional. To make it precise, the trigger describes the condition it enforces: one or more alternatives (keys, modifier tags, or actions that must be held) and how they match - Exact (the held set must equal the condition; an empty condition means nothing may be held), AtLeast (extras are ignored, like the engine chord), or YieldToChordedSibling (fires unless another mapping on the same key claims the held set exactly).

10. Propose your own fixes (optional, C++)

The fix layer has the same hook as the analysis. Register an ICrimsonInputClashFixer and it runs before the built-in fixers, so it can claim a finding first and offer repairs that only make sense for your conventions - for a chord trigger of your own, set its Block When Unchorded flag to false as the alternative to unticking Consume. The edit builders in CrimsonInputClashEdits (consume flag, rebind, remove mapping, priority on a discovered source) cover the common asset writes; anything else is an FCrimsonInputClashEdit with your own Apply lambda. For restructuring a context, UCrimsonInputClashEditLibrary::MoveActionMappings(From, Action, To) moves every mapping of an action with its triggers, modifiers, and per-mapping settings; it is Blueprint-callable and reachable from editor Python as unreal.CrimsonInputClashEditLibrary.move_action_mappings.

// MyProjectEditorModule.cpp - propose repairs for your own conventions
#include "InputClash/CrimsonInputClashFixTypes.h"   // CrimsonInputEditor

class FMyChordFixer : public ICrimsonInputClashFixer
{
public:
	virtual FName GetName() const override { return TEXT("MyChord"); }

	virtual void Propose(const FCrimsonInputClashFixContext& Context, TArray<FCrimsonInputClashFix>& OutFixes) const override
	{
		const FCrimsonInputClashReport& Report = *Context.Report;
		for (int32 Index = 0; Index < Report.Findings.Num(); ++Index)
		{
			const FCrimsonInputClashFinding& Finding = Report.Findings[Index];
			if (Finding.Category != ECrimsonInputClashCategory::GateBlocksWithoutSibling)
			{
				continue;
			}
			FCrimsonInputClashFix Fix;
			Fix.FindingIndex = Index;
			Fix.Tier = ECrimsonInputClashFixTier::Propose;
			Fix.Title = FText::FromString(TEXT("Loosen the chord on this mapping"));
			Fix.Rationale = FText::FromString(TEXT("Switch the trigger to yield-to-sibling semantics."));
			FCrimsonInputClashFixOption& Option = Fix.Options.AddDefaulted_GetRef();
			Option.Label = FText::FromString(TEXT("Set Block When Unchorded = false"));
			// Build an FCrimsonInputClashEdit: Asset, Description, OldValue, NewValue, and an Apply lambda
			// that calls Modify(), writes the property, PostEditChange(), and MarkPackageDirty().
			OutFixes.Add(MoveTemp(Fix));
		}
	}
};

void FMyProjectEditorModule::StartupModule()
{
	FCrimsonInputClashFixerRegistry::Get().Register(MakeShared<FMyChordFixer>());
}
